256Mb NOR Flash memory with a 16-bit word size, offering 110ns access time. Features a 24-bit address bus and operates with a 1.8V supply voltage, ranging from 1.7V to 2V. This component supports both serial and parallel interfaces, with a maximum operating frequency of 40MHz. Packaged in a TSOP-56, it is lead-free and RoHS compliant, suitable for operation between -40°C and 85°C.
Frequency40MHz
PackageTSOP
Voltage1.7V
Current31mA
Quick Jump:
Technical Specifications
Micron JS28F256P30TFA technical specifications.
General
Access Time
110ns
Access Time-Max
110ns
Address Bus Width
24b
Package/Case
TSOP
Density
256Mb
Frequency
40MHz
Interface
Serial, Parallel
Max Operating Temperature
85°C
Max Supply Voltage
2V
Memory Size
256Mb
Memory Type
Non-Volatile, , FLASH, NOR
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Number of Words
16777216
Operating Supply Voltage
1.8V
Packaging
Tray
Page Size
16Words
Radiation Hardening
No
RoHS Compliant
Yes
Series
StrataFlash™
Supply Current
31mA
Sync/Async
Asynchronous, Synchronous
Voltage
1.7V
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Micron JS28F256P30TFA Datasheet
Download the complete datasheet for Micron JS28F256P30TFA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

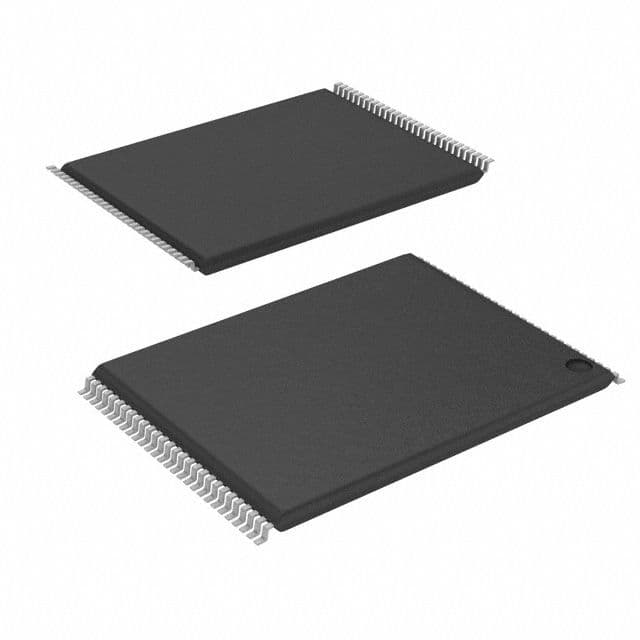

Product Images
