512Mb NOR Flash memory with a 16-bit word size, offering 105ns access time. This component features a parallel and serial interface, operating at up to 40MHz. It is housed in a TSOP-56 package with dimensions of 14.2mm width, 18.6mm length, and 1.03mm height. The device supports a voltage range of 2.3V to 3.6V and operates between -40°C and 85°C.
Frequency40MHz
PackageTSOP
Voltage2.3V
Current31mA
Quick Jump:
Technical Specifications
Micron JS28F512P33EFA technical specifications.
General
Access Time
105ns
Access Time-Max
105ns
Address Bus Width
25b
Package/Case
TSOP
Density
512Mb
Frequency
40MHz
Height
1.03mm
Interface
Parallel, Serial
Length
18.6mm
Max Operating Temperature
85°C
Memory Size
512Mb
Memory Type
Non-Volatile, , FLASH, NOR
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Packaging
Tray
Page Size
16Words
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Axcell™
Supply Current
31mA
Sync/Async
Asynchronous, Synchronous
Voltage
2.3V
Width
14.2mm
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Micron JS28F512P33EFA Datasheet
Download the complete datasheet for Micron JS28F512P33EFA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

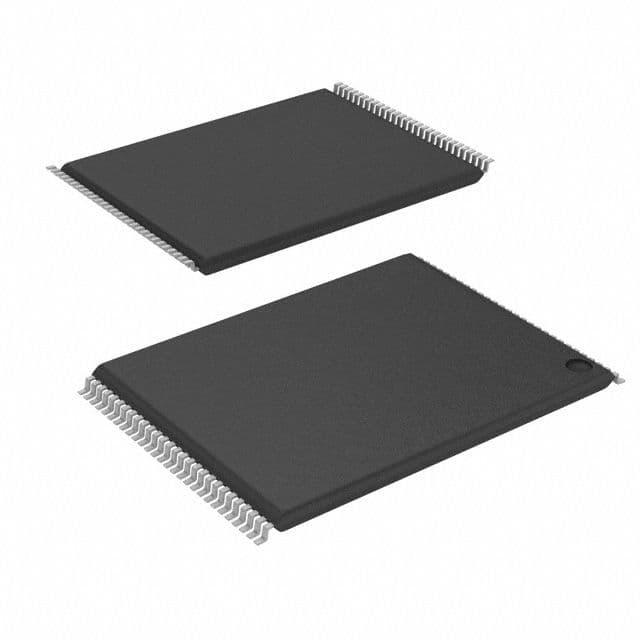

Product Images
