64Mb NOR Flash memory with a 16-bit word size, offering 70ns access time. Features a parallel and serial interface, operating at 40MHz with a 22-bit address bus. This non-volatile memory component is housed in a TSOP package, supporting a supply voltage range of 2.3V to 3.6V and operating temperatures from -40°C to 85°C. RoHS compliant and available in tray packaging.
Frequency40MHz
PackageTSOP
Voltage2.3V
Current28mA
Quick Jump:
Technical Specifications
Micron JS28F640P33TF70A technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 22b |
| Package/Case | TSOP |
| Density | 64Mb |
| Frequency | 40MHz |
| Height | 1.03mm |
| Interface | Parallel, Serial |
| Length | 18.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Supply Voltage | 2.3V |
| Packaging | Tray |
| Page Size | 8Words |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 28mA |
| Sync/Async | Asynchronous, Synchronous |
| Voltage | 2.3V |
| Width | 14.2mm |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Micron JS28F640P33TF70A Datasheet
Download the complete datasheet for Micron JS28F640P33TF70A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

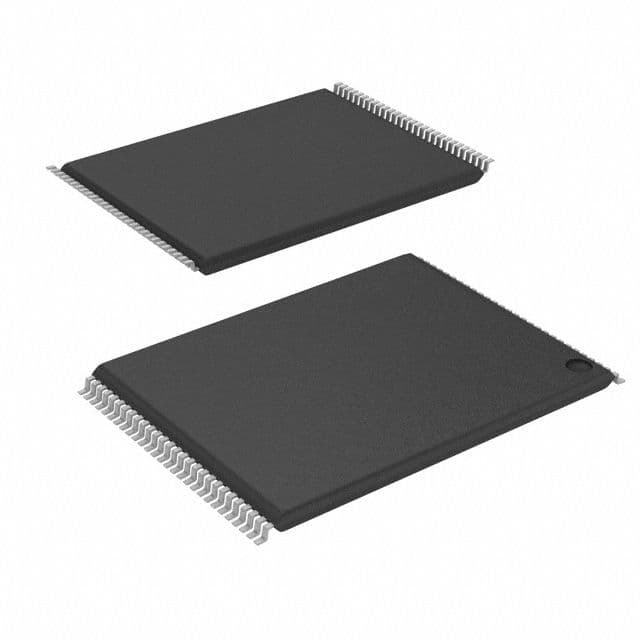

Product Images
