Technical Specifications
Micron M25P128-VME6G technical specifications.
General
| Access Time-Max | 8ns |
| Address Bus Width | 1b |
| Density | 128Mb |
| Frequency | 50MHz |
| Interface | SPI, Serial |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Words | 16777216 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Supply Current | 8mA |
| Sync/Async | Synchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Micron M25P128-VME6G Datasheet
Download the complete datasheet for Micron M25P128-VME6G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

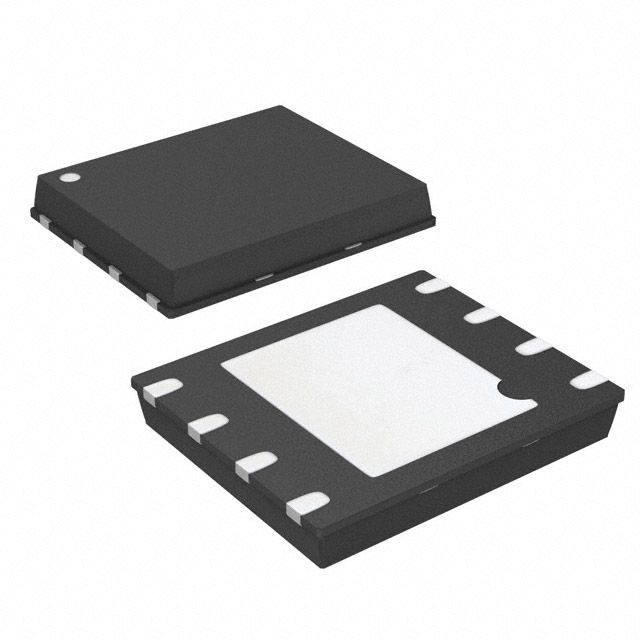

Product Images
