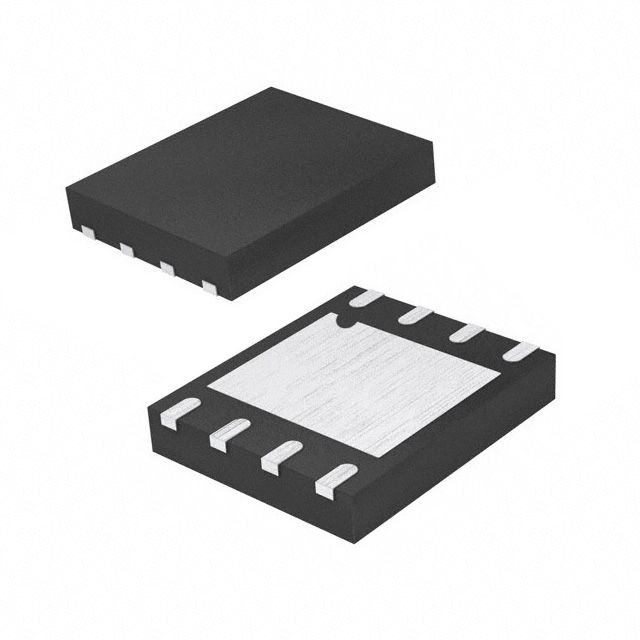

The M25P40-VMP6G is a 4Mb SPI serial FLASH memory with an access time of 8ns and a maximum operating frequency of 50MHz. It operates within a temperature range of -40°C to 85°C and can be supplied with a voltage between 2.3V and 3.6V. The device is mounted using surface mount technology and is available in a VFQFPN-8 package. The M25P40-VMP6G is compliant with RoHS regulations and has a supply current of 8mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Micron M25P40-VMP6G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time-Max | 8ns |
| Address Bus Width | 1b |
| Density | 4Mb |
| Frequency | 50MHz |
| Interface | SPI, Serial |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Words | 512000 |
| Packaging | Tray |
| Page Size | 256B |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 8mA |
| Sync/Async | Synchronous |
| Termination | SMD/SMT |
| Word Size | 8b |
| RoHS | Compliant |
