Micron
M28W160CB70N6E
16Mb Non-Volatile Flash Memory, 20b Address Bus Width, 16b Word Size, TSOP Package
The Micron M28W160CB70N6E is a 16Mb non-volatile flash memory with a 20-bit address bus width and 16-bit word size. It operates at a maximum supply voltage of 3.6V and a minimum supply voltage of 2.7V, with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The memory is packaged in a TSOP package and is RoHS compliant. It has a supply current of 20mA and is designed for asynchronous operation.
PackageTSOP
Voltage2.7V
Current20mA
Quick Jump:
Technical Specifications
Micron M28W160CB70N6E technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 20b |
| Package/Case | TSOP |
| Density | 16Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Packaging | Tray |
| Page Size | 4Words |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 20mA |
| Sync/Async | Asynchronous |
| Voltage | 2.7V |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Micron M28W160CB70N6E Datasheet
Download the complete datasheet for Micron M28W160CB70N6E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

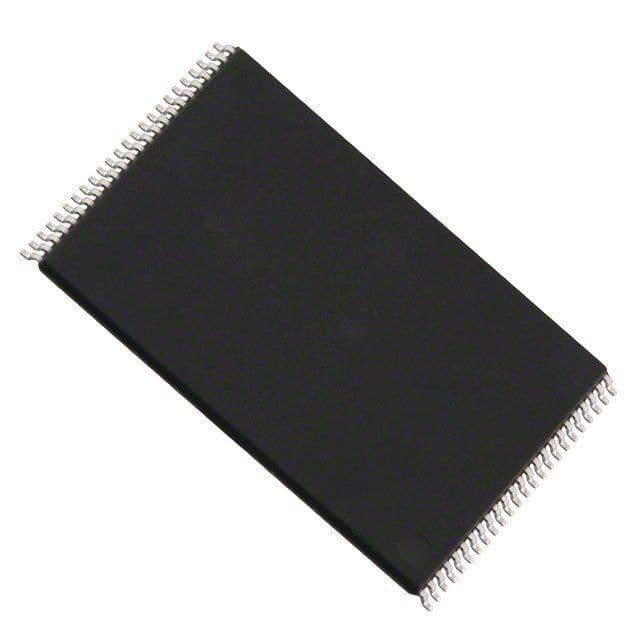

Product Images
