The M28W160ECT70ZB6E is a 16Mb non-volatile flash memory with a 16b word size and 20b address bus width. It operates at a maximum supply voltage of 3.6V and a maximum supply current of 18mA. The memory is packaged in a TFBGA package and is available in a tray. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The M28W160ECT70ZB6E is RoHS compliant and does not have radiation hardening.
PackageTFBGA
Voltage2.7V
Current18mA
Quick Jump:
Technical Specifications
Micron M28W160ECT70ZB6E technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Address Bus Width | 20b |
| Package/Case | TFBGA |
| Density | 16Mb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Memory Size | 16Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 18mA |
| Sync/Async | Asynchronous |
| Voltage | 2.7V |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Micron M28W160ECT70ZB6E Datasheet
Download the complete datasheet for Micron M28W160ECT70ZB6E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

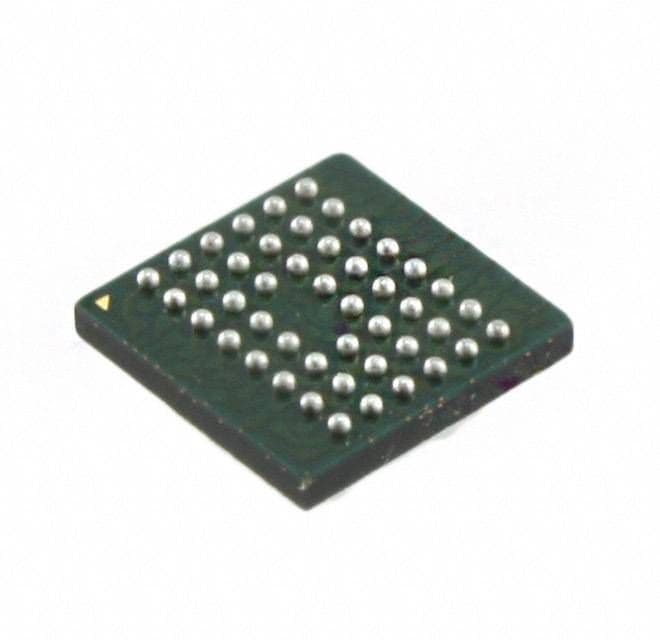

Product Images
