The M29W320DB70N6E is a 32Mb non-volatile flash memory device from Micron. It operates within a temperature range of -40°C to 85°C and has a supply voltage of 2.7V to 3.6V. The device has a maximum supply current of 10mA and is available in a TSOP package. The M29W320DB70N6E is RoHS compliant and is suitable for use in a variety of applications.
PackageTSOP
Voltage2.7V
Current10mA
Quick Jump:
Technical Specifications
Micron M29W320DB70N6E technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Package/Case | TSOP |
| Density | 32Mb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Sync/Async | Asynchronous |
| Voltage | 2.7V |
Compliance
| RoHS | Compliant |
Datasheet
Micron M29W320DB70N6E Datasheet
Download the complete datasheet for Micron M29W320DB70N6E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

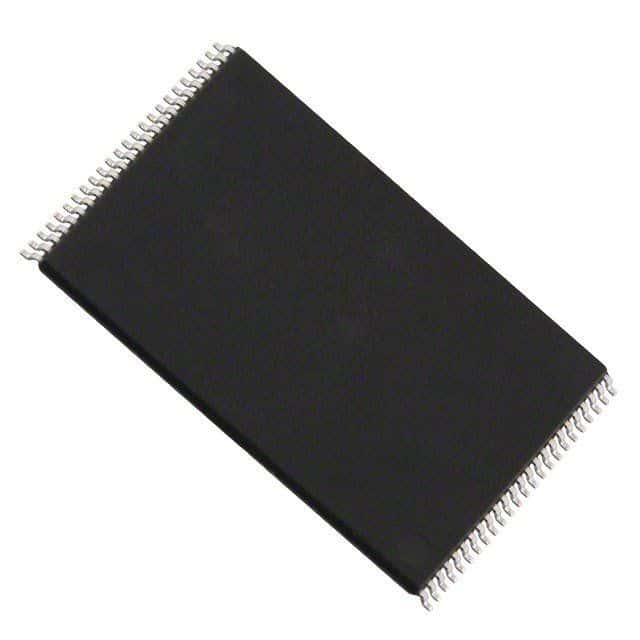

Product Images
