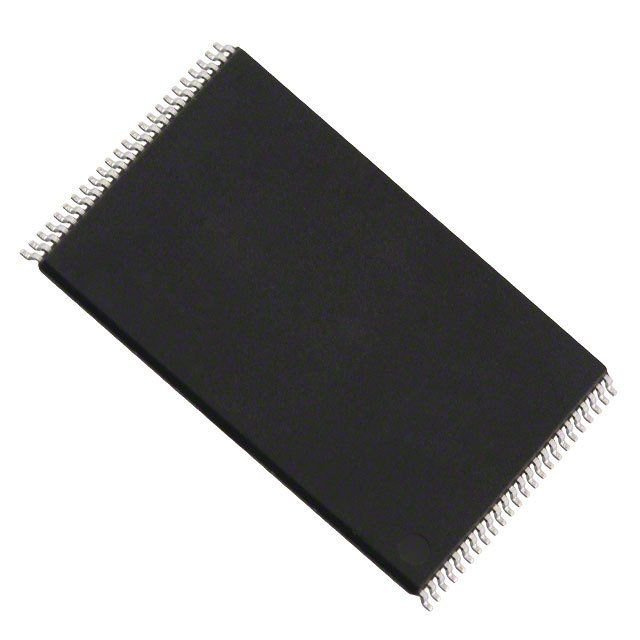

This 32Mb parallel flash memory has an access time of 70ns and operates at a maximum supply voltage of 3.6V. It is packaged in a TSOP and has a maximum operating temperature of 85°C. The memory is non-volatile and has a memory size of 32Mb. It is RoHS compliant and has a supply current of 10mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Micron M29W320ET70N6E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Package/Case | TSOP |
| Density | 32Mb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Supply Voltage | 2.7V |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Sync/Async | Asynchronous |
| Termination | SMD/SMT |
| Voltage | 2.7V |
| RoHS | Compliant |
Download the complete datasheet for Micron M29W320ET70N6E to view detailed technical specifications.
