512Mb DDR SDRAM memory chip, organized as 32Mx16, featuring a 16-bit data bus and 15-bit address bus. This surface mount component operates at 2.6V with a maximum supply voltage of 2.7V, offering a minimum supply voltage of 2.5V. It supports frequencies up to 400MHz, with an access time of 0.7ns. The TSOP package measures 22.22mm in length, 10.16mm in width, and 1.2mm in height, and is supplied in a tray. This RoHS compliant component operates within a temperature range of 0°C to 70°C.
Frequency200MHz
PackageTSOP
Current480mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT46V32M16P-5B:J technical specifications.
General
Access Time
700ps
Access Time-Max
0.7ns
Address Bus Width
15b
Package/Case
TSOP
Data Bus Width
16b
Density
512Mb
Frequency
200MHz
Height
1.2mm
Lead Free
Lead Free
Length
22.22mm
Max Frequency
400MHz
Max Operating Temperature
70°C
Max Supply Voltage
2.7V
Memory Size
512Mb
Memory Type
Volatile,
Min Operating Temperature
0°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
2.6V
Organization
32MX16
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
480mA
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
Micron MT46V32M16P-5B:J Datasheet
Download the complete datasheet for Micron MT46V32M16P-5B:J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

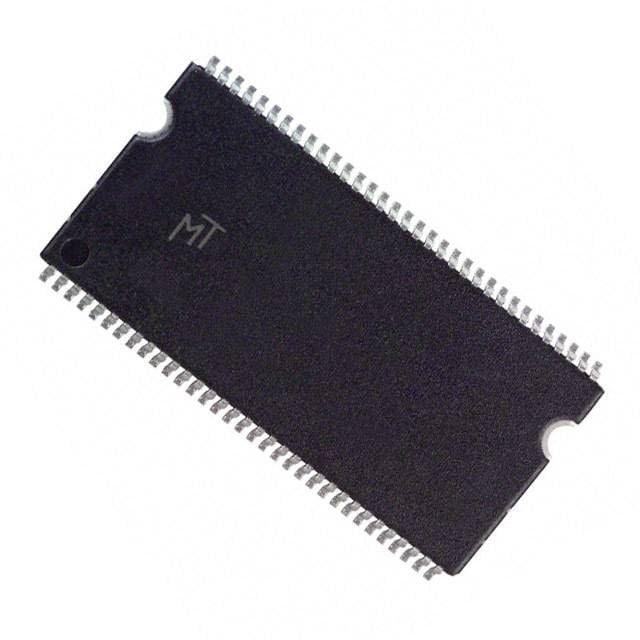

Product Images
