512Mb DDR DRAM with a 32Mx16 organization, featuring a 16-bit data bus and 15-bit address bus. Operates at 167MHz with a maximum frequency of 333MHz and a fast 0.7ns access time. This CMOS component is housed in a 66-pin TSOP package, measuring 22.22mm in length, 10.16mm in width, and 1mm in height. It supports a 2.5V operating supply voltage, ranging from 2.3V to 2.7V, and operates within a temperature range of 0°C to 70°C. This surface mount device is lead-free and RoHS compliant.
Frequency167MHz
PackageTSOP
Current195mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT46V32M16P-6T:F technical specifications.
General
Access Time
700ps
Access Time-Max
0.7ns
Address Bus Width
15b
Package/Case
TSOP
Data Bus Width
16b
Density
512Mb
Frequency
167MHz
Height
1mm
Lead Free
Lead Free
Length
22.22mm
Max Frequency
333MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
2.7V
Memory Size
512Mb
Memory Type
Volatile,
Min Supply Voltage
2.3V
Mount
Surface Mount
Operating Supply Voltage
2.5V
Organization
32MX16
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
195mA
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
Micron MT46V32M16P-6T:F Datasheet
Download the complete datasheet for Micron MT46V32M16P-6T:F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

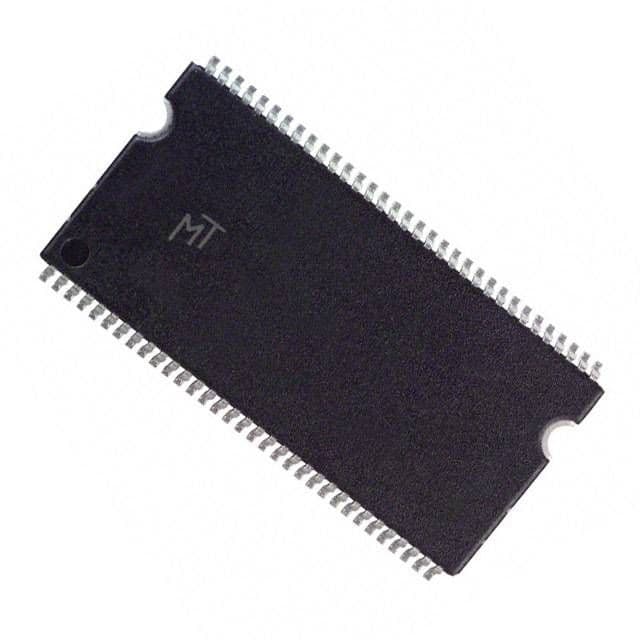

Product Images
