1Gb DDR DRAM memory module featuring a 64Mx16 organization and 16-bit address/data bus width. Achieves a 450ps access time and operates at frequencies up to 667MHz. This surface mount component is housed in an 8mm x 12.5mm FBGA package with a height of 0.8mm. It operates with a supply voltage of 1.8V, ranging from 1.7V to 1.9V, and is RoHS compliant.
Frequency333MHz
PackageFBGA
Current135mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT47H64M16HR-3:H technical specifications.
General
| Access Time | 450ps |
| Access Time-Max | 0.45ns |
| Address Bus Width | 16b |
| Package/Case | FBGA |
| Data Bus Width | 16b |
| Density | 1Gb |
| Frequency | 333MHz |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max Frequency | 667MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.9V |
| Memory Size | 1Gb |
| Memory Type | Volatile, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 1.8V |
| Organization | 64MX16 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 135mA |
| Width | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Micron MT47H64M16HR-3:H Datasheet
Download the complete datasheet for Micron MT47H64M16HR-3:H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

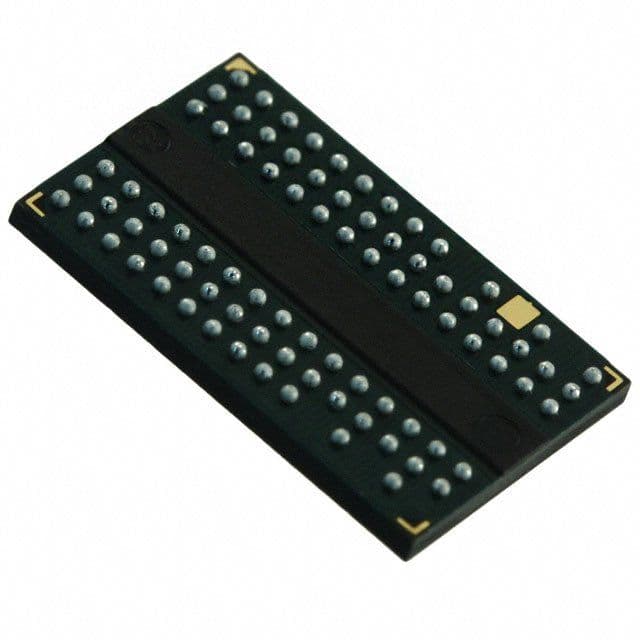

Product Images
