This 512Mb volatile SRAM from Micron features an access time of 400ps and a maximum frequency of 800MHz. It operates within a temperature range of 0°C to 85°C and is supplied with a voltage of 1.8V. The device is packaged in a lead-free FBGA package and is suitable for surface mount applications.
Frequency400MHz
PackageFBGA
Current125mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT47H64M8CF-25E:G technical specifications.
General
| Access Time | 400ps |
| Access Time-Max | 0.4ns |
| Address Bus Width | 16b |
| Package/Case | FBGA |
| Data Bus Width | 8b |
| Density | 512Mb |
| Frequency | 400MHz |
| Lead Free | Lead Free |
| Max Frequency | 800MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.9V |
| Memory Size | 512Mb |
| Memory Type | Volatile, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 1.8V |
| Organization | 64MX8 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 125mA |
Compliance
| RoHS | Compliant |
Datasheet
Micron MT47H64M8CF-25E:G Datasheet
Download the complete datasheet for Micron MT47H64M8CF-25E:G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

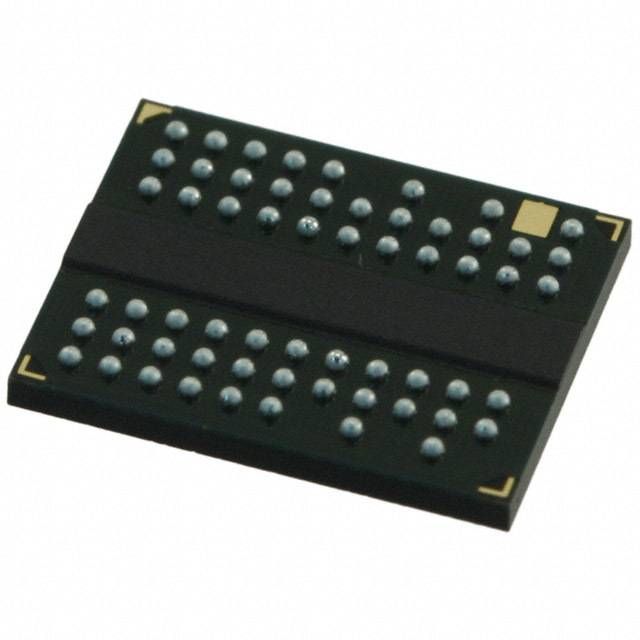

Product Images
