256Mb Synchronous DRAM (SDRAM) with a 16Mx16 organization, offering a 16-bit data bus width and 15-bit address bus. Features a maximum operating frequency of 133MHz and a fast 5.4ns access time. This surface mount component operates from a 3V to 3.6V supply voltage, with a typical 3.3V operating voltage. Packaged in a 54-pin TSOP with lead-free and RoHS compliant construction.
Frequency133MHz
PackageTSOP
Current135mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC16M16A2P-75:D technical specifications.
General
Access Time
5.4ns
Access Time-Max
6ns
Address Bus Width
15b
Package/Case
TSOP
Data Bus Width
16b
Density
256Mb
Frequency
133MHz
Height
1mm
Interface
Parallel
Lead Free
Lead Free
Length
22.22mm
Max Frequency
133MHz
Max Operating Temperature
70°C
Max Supply Voltage
3.6V
Memory Size
256Mb
Memory Type
Volatile, , SDRAM
Min Operating Temperature
0°C
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Organization
16MX16
Packaging
Tray
Page Size
256Mb
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
135mA
Termination
SMD/SMT
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
Micron MT48LC16M16A2P-75:D Datasheet
Download the complete datasheet for Micron MT48LC16M16A2P-75:D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

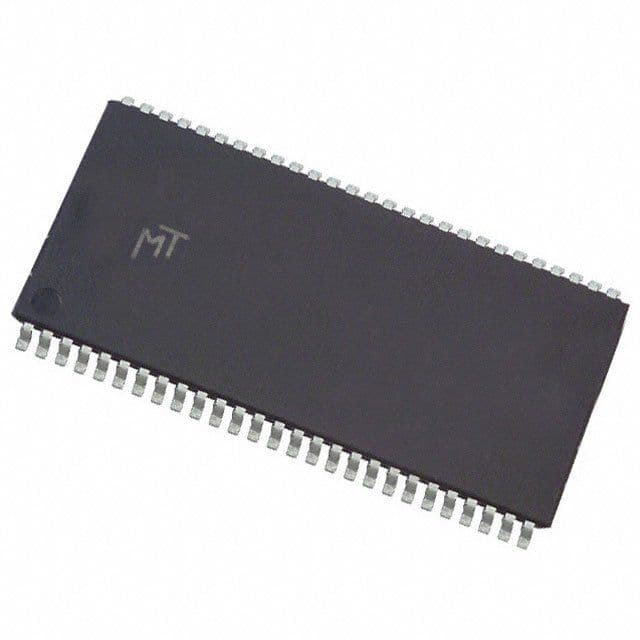

Product Images
