Micron
MT48LC16M16A2P-7E:D
Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54
Frequency133MHz
PackageTSOP
Current135mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC16M16A2P-7E:D technical specifications.
General
Access Time
5.4ns
Access Time-Max
5.4ns
Address Bus Width
15b
Package/Case
TSOP
Data Bus Width
16b
Density
256Mb
Frequency
133MHz
Lead Free
Lead Free
Max Frequency
143MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
30.5MB
Memory Type
Volatile,
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Organization
16MX16
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
135mA
Compliance
RoHS
Compliant
Datasheet
Micron MT48LC16M16A2P-7E:D Datasheet
Download the complete datasheet for Micron MT48LC16M16A2P-7E:D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

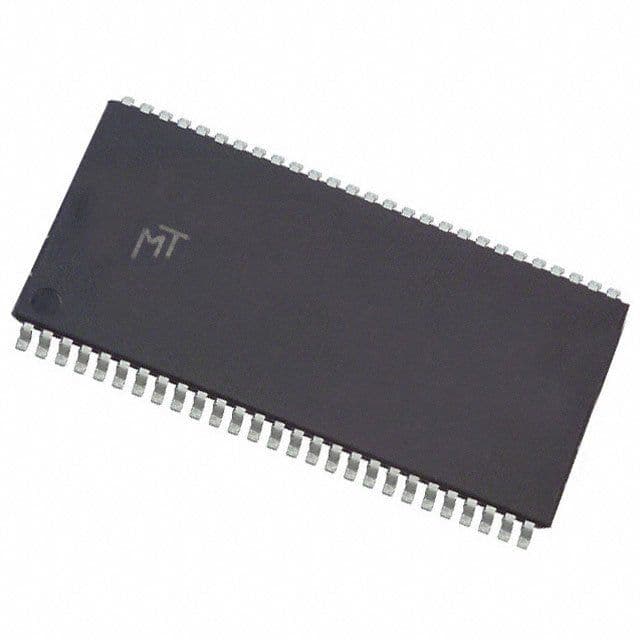

Product Images
