Micron
MT48LC2M32B2P-6A:J
Synchronous DRAM, 2MX32, 5.4ns, CMOS, PDSO86, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-86
Frequency167MHz
PackageTFSOP
Current120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC2M32B2P-6A:J technical specifications.
General
Access Time
5.4ns
Access Time-Max
5.4ns
Address Bus Width
13b
Package/Case
TFSOP
Data Bus Width
32b
Density
64Mb
Frequency
167MHz
Max Frequency
167MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
64Mb
Memory Type
Volatile,
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Organization
2MX32
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
120mA
Compliance
RoHS
Compliant
Datasheet
Micron MT48LC2M32B2P-6A:J Datasheet
Download the complete datasheet for Micron MT48LC2M32B2P-6A:J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

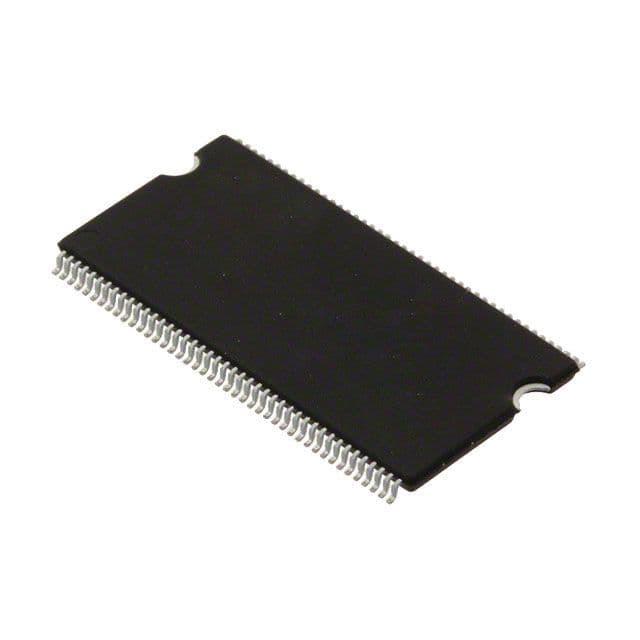

Product Images
