64Mb Synchronous DRAM (SDRAM) with a 2Mx32 organization, operating at a maximum frequency of 143MHz. Features a 5.5ns access time and a 32-bit data bus width. This surface mount component is housed in a 86-pin TSOP package, requiring a 3.3V operating supply voltage. RoHS compliant and suitable for operation between 0°C and 70°C.
Frequency143MHz
PackageTFSOP
Current160mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC2M32B2P-7:G technical specifications.
General
Access Time
5.5ns
Access Time-Max
17ns
Address Bus Width
13b
Package/Case
TFSOP
Data Bus Width
32b
Density
64Mb
Frequency
143MHz
Height
1mm
Length
22.22mm
Max Frequency
143MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
64Mb
Memory Type
Volatile,
Min Supply Voltage
3V
Mount
Surface Mount
Number of Words
512000
Operating Supply Voltage
3.3V
Organization
2MX32
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
160mA
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
Micron MT48LC2M32B2P-7:G Datasheet
Download the complete datasheet for Micron MT48LC2M32B2P-7:G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

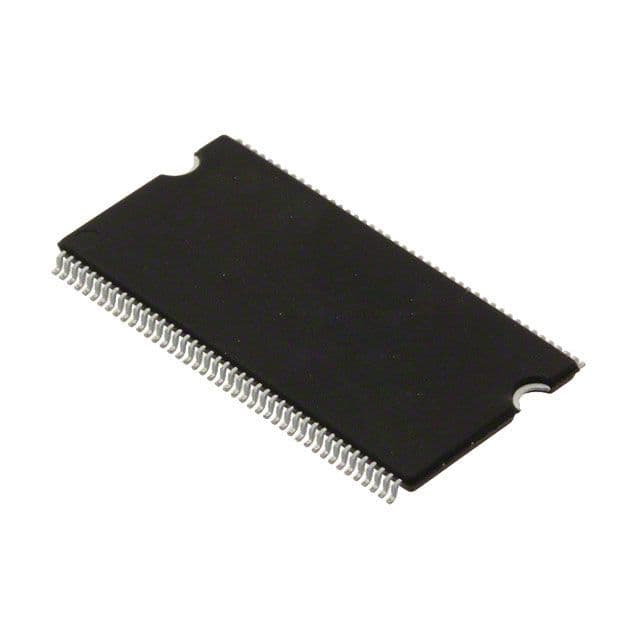

Product Images
