Micron
MT48LC4M32B2P-6:G
Synchronous DRAM, 4MX32, 5.5ns, CMOS, PDSO86, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-86
Frequency167MHz
PackageTFSOP
Current195mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC4M32B2P-6:G technical specifications.
General
Access Time
5.5ns
Address Bus Width
14b
Package/Case
TFSOP
Data Bus Width
32b
Density
128Mb
Frequency
167MHz
Max Frequency
166MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
15.3MB
Memory Type
Volatile,
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Organization
4MX32
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
195mA
Compliance
RoHS
Compliant
Datasheet
Micron MT48LC4M32B2P-6:G Datasheet
Download the complete datasheet for Micron MT48LC4M32B2P-6:G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

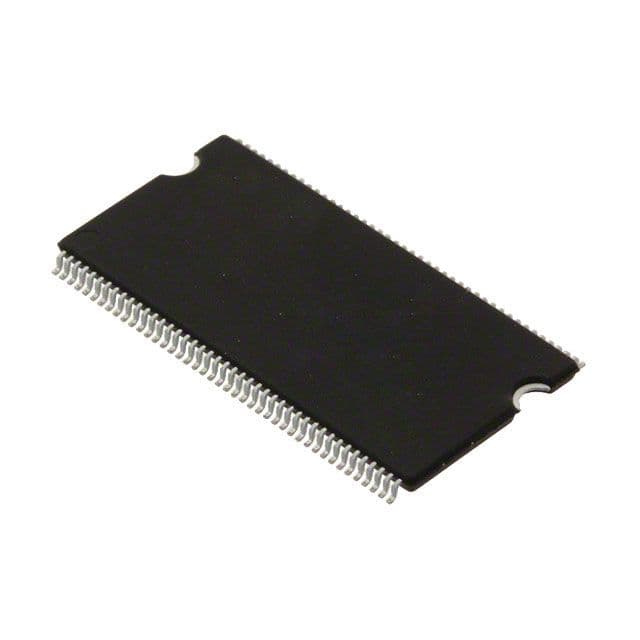

Product Images
