128Mb Synchronous DRAM (SDRAM) with a 4Mx32 organization, featuring a 5.5ns access time and operating at up to 143MHz. This volatile memory component utilizes a 32-bit data bus and a 14-bit address bus, housed in a lead-free, surface-mount TSOP2-86 package. It operates from a 3V to 3.6V supply voltage, with a typical operating voltage of 3.3V, and is RoHS compliant.
Frequency143MHz
PackageTFSOP
Current175mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC4M32B2P-7:G technical specifications.
General
Access Time
5.5ns
Access Time-Max
17ns
Address Bus Width
14b
Package/Case
TFSOP
Data Bus Width
32b
Density
128Mb
Frequency
143MHz
Height
1mm
Lead Free
Lead Free
Length
22.22mm
Max Frequency
143MHz
Max Operating Temperature
70°C
Max Supply Voltage
3.6V
Memory Size
128Mb
Memory Type
Volatile,
Min Operating Temperature
0°C
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Organization
4MX32
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
175mA
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
Micron MT48LC4M32B2P-7:G Datasheet
Download the complete datasheet for Micron MT48LC4M32B2P-7:G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

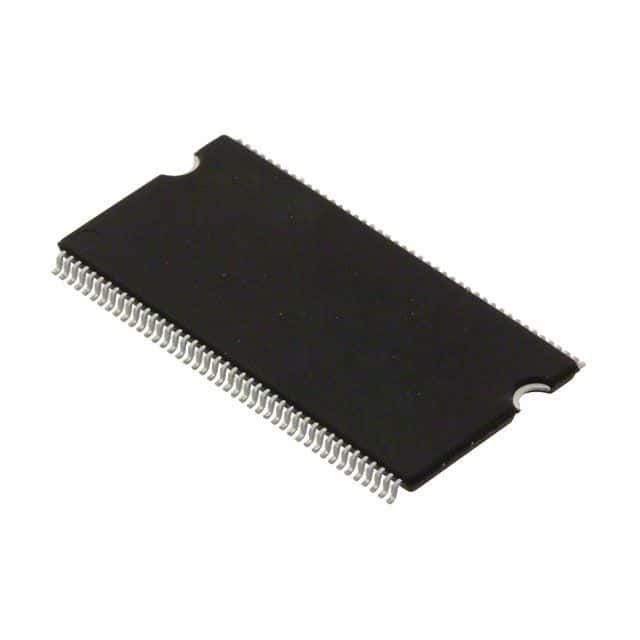

Product Images
