128Mb Synchronous DRAM (SDRAM) with an 8Mx16 organization, featuring a 5.4ns access time and operating at a maximum frequency of 167MHz. This volatile memory component utilizes a 14-bit address bus and a 16-bit data bus. Packaged in a 54-pin TSOP (Thin Small Outline Package) with dimensions of 22.22mm length, 10.16mm width, and 1.2mm height, it supports surface mounting. The device operates within a voltage range of 3V to 3.6V, with a typical operating voltage of 3.3V, and is RoHS compliant and lead-free.
Frequency167MHz
PackageTSOP
Current165mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC8M16A2P-6A:L technical specifications.
General
Access Time
5.4ns
Access Time-Max
5.4ns
Address Bus Width
14b
Package/Case
TSOP
Data Bus Width
16b
Density
128Mb
Frequency
167MHz
Height
1.2mm
Lead Free
Lead Free
Length
22.22mm
Max Frequency
167MHz
Max Operating Temperature
70°C
Memory Size
128Mb
Memory Type
Volatile,
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Voltage
3.3V
Organization
8MX16
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
165mA
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
Micron MT48LC8M16A2P-6A:L Datasheet
Download the complete datasheet for Micron MT48LC8M16A2P-6A:L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

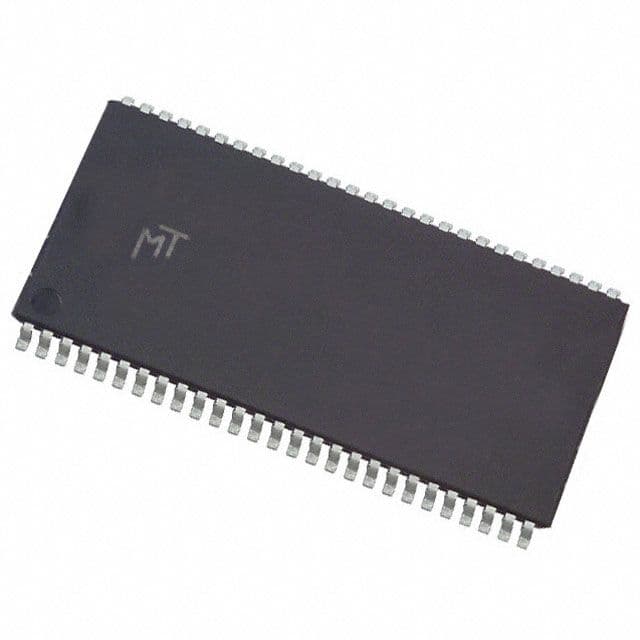

Product Images
