128Mb SDRAM, organized as 8Mx16, offers a 16-bit data bus width and 14-bit address bus width. This synchronous DRAM operates at a maximum frequency of 133MHz with a 5.4ns access time. Featuring a TSOP package, it supports a 3.3V operating supply voltage and is surface mountable. The component is RoHS compliant and designed for CMOS technology.
Frequency133MHz
PackageTSOP
Current150mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron MT48LC8M16A2P-75:G technical specifications.
General
| Access Time | 5.4ns |
| Access Time-Max | 6ns |
| Address Bus Width | 14b |
| Package/Case | TSOP |
| Data Bus Width | 16b |
| Density | 128Mb |
| Frequency | 133MHz |
| Height | 1mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 22.22mm |
| Max Frequency | 133MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128Mb |
| Memory Type | Volatile, , SDRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Organization | 8MX16 |
| Packaging | Tray |
| Page Size | 128Mb |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 150mA |
| Termination | SMD/SMT |
| Width | 10.16mm |
Compliance
| RoHS | Compliant |
Datasheet
Micron MT48LC8M16A2P-75:G Datasheet
Download the complete datasheet for Micron MT48LC8M16A2P-75:G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

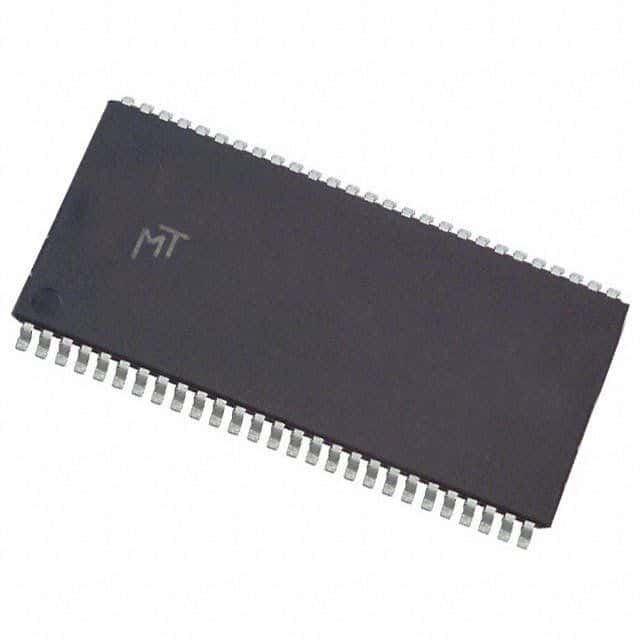

Product Images
