Technical Specifications
Micron MT48LC8M16A2TG-75:G technical specifications.
General
| Access Time | 5.4ns |
| Address Bus Width | 14b |
| Package/Case | TSOP |
| Data Bus Width | 16b |
| Density | 128Mb |
| Frequency | 133MHz |
| Lead Free | Contains Lead |
| Max Frequency | 133MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128Mb |
| Memory Type | Volatile, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Organization | 8MX16 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Current | 150mA |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Micron MT48LC8M16A2TG-75:G Datasheet
Download the complete datasheet for Micron MT48LC8M16A2TG-75:G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

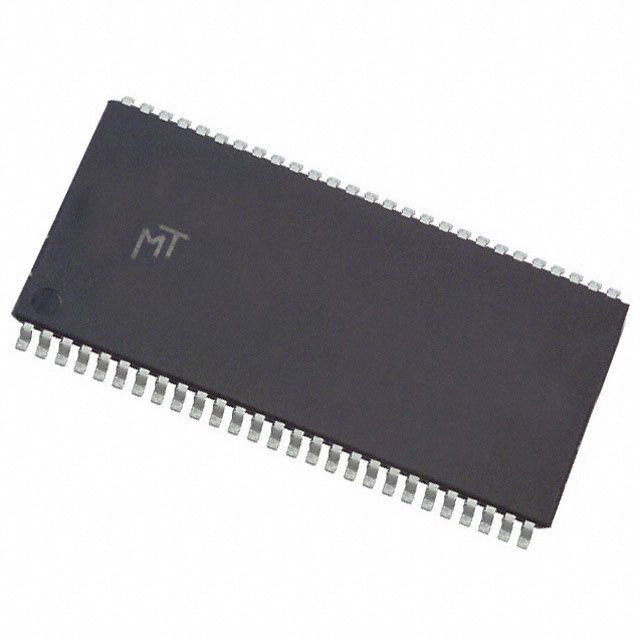

Product Images
