Frequency108MHz
Voltage2.7V
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Micron N25Q064A13EF840E technical specifications.
General
Access Time-Max
7ns
Address Bus Width
1b
Density
64Mb
Frequency
108MHz
Interface
SPI, Serial
Max Operating Temperature
85°C
Memory Size
64Mb
Memory Type
Non-Volatile, , FLASH, NOR
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Packaging
Tray
Page Size
256B
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
20mA
Sync/Async
Synchronous
Voltage
2.7V
Compliance
RoHS
Compliant
Datasheet
Micron N25Q064A13EF840E Datasheet
Download the complete datasheet for Micron N25Q064A13EF840E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

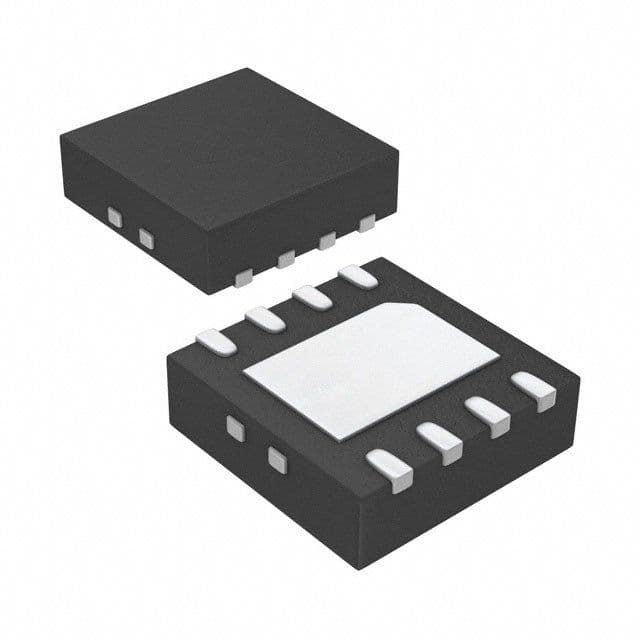

Product Images
