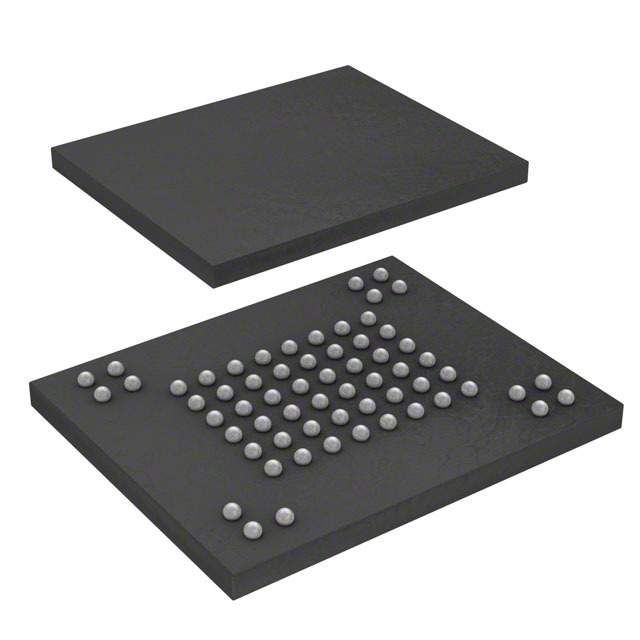

The NAND512W3A2DZA6E is a 512Mb non-volatile flash memory with a 512B page size and 26-bit address bus width. It operates at a maximum supply voltage of 3.6V and a minimum supply voltage of 2.7V. The device is available in a VFBGA package and is surface mountable. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The memory is RoHS compliant and has a supply current of 30mA.
Checking distributor stock and pricing after the page loads.
| Access Time | 50ns |
| Access Time-Max | 12us |
| Address Bus Width | 26b |
| Package/Case | VFBGA |
| Density | 512Mb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 512Mb |
| Memory Type | Non-Volatile, , FLASH, NAND |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Packaging | Tray |
| Page Size | 512B |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 30mA |
| Sync/Async | Asynchronous |
| Word Size | 8b |
| RoHS | Compliant |
