The PC28F256P33BFA is a 256Mb non-volatile flash memory device from Micron, featuring a maximum operating frequency of 52MHz and a maximum supply voltage of 3.6V. It operates within a temperature range of -40°C to 85°C and is available in a TBGA package. The device has a memory size of 256Mb and a word size of 16 bits, with a supply current of 31mA. It is compliant with RoHS regulations and is part of the Axcell series.
Frequency52MHz
PackageTBGA
Voltage2.3V
Current31mA
Quick Jump:
Technical Specifications
Micron PC28F256P33BFA technical specifications.
General
| Access Time | 95ns |
| Access Time-Max | 95ns |
| Address Bus Width | 24b |
| Package/Case | TBGA |
| Density | 256Mb |
| Frequency | 52MHz |
| Interface | Serial, Parallel |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Number of Words | 16777216 |
| Packaging | Tray |
| Page Size | 16Words |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Axcell™ |
| Supply Current | 31mA |
| Sync/Async | Asynchronous, Synchronous |
| Voltage | 2.3V |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Micron PC28F256P33BFA Datasheet
Download the complete datasheet for Micron PC28F256P33BFA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

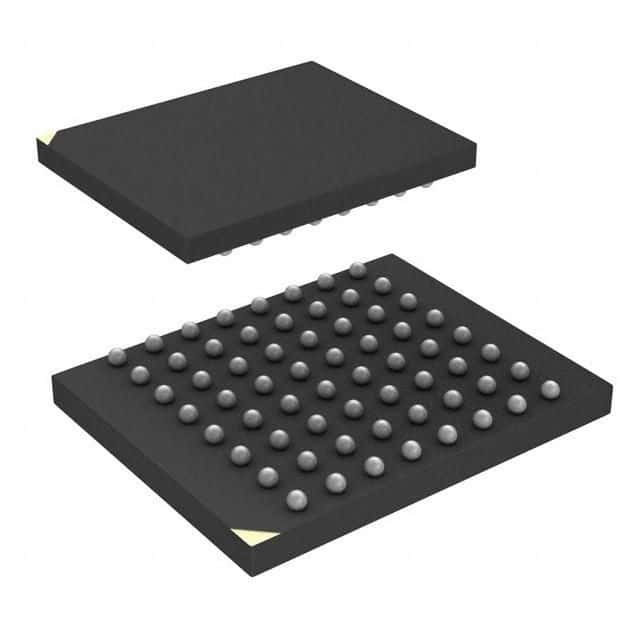

Product Images
