The PC28F512P33BFD is a 512Mb non-volatile FLASH memory from Micron, operating at a frequency of 52MHz. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The memory is supplied with a maximum voltage of 3.6V and a minimum voltage of 2.3V, with a supply current of 31mA. It is available in a BGA package and is RoHS compliant.
Frequency52MHz
PackageBGA
Voltage2.3V
Current31mA
Quick Jump:
Technical Specifications
Micron PC28F512P33BFD technical specifications.
General
| Access Time | 95ns |
| Address Bus Width | 25b |
| Package/Case | BGA |
| Density | 512Mb |
| Frequency | 52MHz |
| Interface | Serial, Parallel |
| Max Operating Temperature | 85°C |
| Memory Size | 512Mb |
| Memory Type | Non-Volatile, , FLASH, NOR |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.3V |
| Packaging | Tray |
| Page Size | 16Words |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Axcell™ |
| Supply Current | 31mA |
| Sync/Async | Asynchronous, Synchronous |
| Voltage | 2.3V |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Micron PC28F512P33BFD Datasheet
Download the complete datasheet for Micron PC28F512P33BFD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

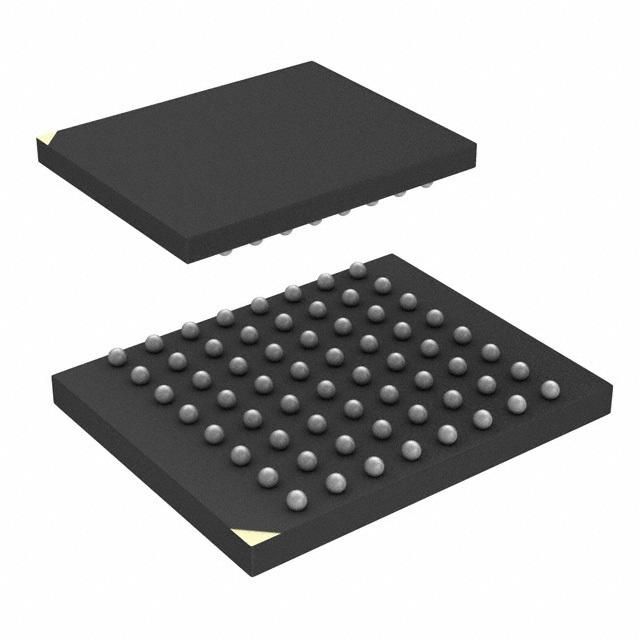

Product Images
