Frequency52MHz
PackageLBGA
Voltage1.7V
Current31mA
Quick Jump:
Technical Specifications
Micron PC48F4400P0VB0EE technical specifications.
General
Access Time
100ns
Access Time-Max
100ns
Address Bus Width
24b
Package/Case
LBGA
Density
512Mb
Frequency
52MHz
Interface
Serial, Parallel
Max Operating Temperature
85°C
Max Supply Voltage
2V
Memory Size
512Mb
Memory Type
Non-Volatile, , FLASH, NOR
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Operating Supply Voltage
1.8V
Packaging
Tray
Page Size
16Words
Radiation Hardening
No
RoHS Compliant
Yes
Series
Axcell™
Supply Current
31mA
Sync/Async
Asynchronous, Synchronous
Voltage
1.7V
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Micron PC48F4400P0VB0EE Datasheet
Download the complete datasheet for Micron PC48F4400P0VB0EE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

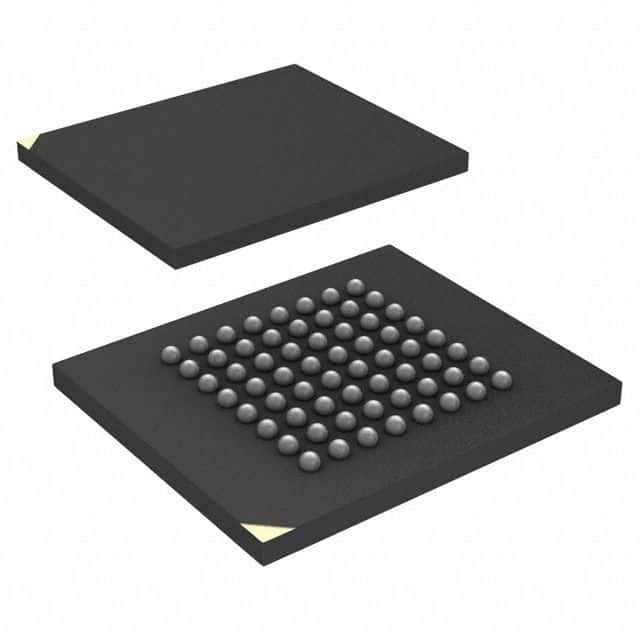

Product Images
