Microsemi
A3P250-PQ208I
Field Programmable Gate Array, 6144 CLBs, 250000 Gates, 350MHz, CMOS, PQFP208, 28 X 28 MM, 3.40 MM HEIGHT, 0.50 MM PITCH, PLASTIC, QFP-208
Frequency231MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microsemi A3P250-PQ208I technical specifications.
General
Package/Case
PQFP
Frequency
231MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.575V
Min Supply Voltage
1.425V
Mount
Surface Mount
Number of Gates
250000
Number of I/Os
151
Number of Registers
6144
Operating Supply Voltage
1.5V
Package Quantity
24
Packaging
Tray
Radiation Hardening
No
RAM Size
36864b
RoHS Compliant
No
Series
ProASIC3
Compliance
RoHS
Not CompliantNo
Datasheet
Microsemi A3P250-PQ208I Datasheet
Download the complete datasheet for Microsemi A3P250-PQ208I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

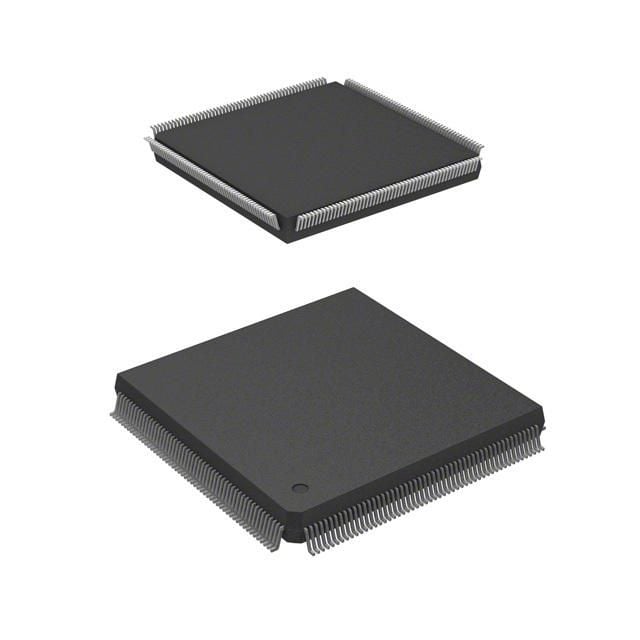

Product Images
