Technical Specifications
Microsemi JANTX1N6161AUS technical specifications.
General
| Package/Case | MELF |
| Clamping Voltage | 85.3V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Leakage Current | 5uA |
| Min Breakdown Voltage | 58.9V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Packaging | Bulk |
| Peak Pulse Current | 17.6A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | Yes |
| Reverse Breakdown Voltage | 58.9V |
| Reverse Standoff Voltage | 47.1V |
| RoHS Compliant | No |
| Series | Military, MIL-PRF-19500/516 |
Compliance
| RoHS | Not CompliantYes |
Datasheet
Microsemi JANTX1N6161AUS Datasheet
Download the complete datasheet for Microsemi JANTX1N6161AUS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

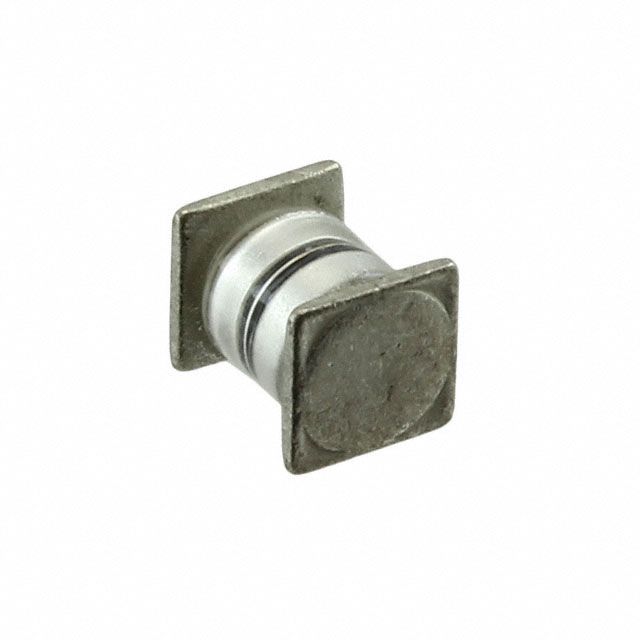

Product Images
