Dual operational amplifier featuring a voltage-feedback architecture. Offers a nominal supply voltage range of ±15V, with limits up to ±18V. Key specifications include a maximum input offset voltage of 6000µV, a nominal slew rate of 2.2V/µs, and a unity gain bandwidth of 7000kHz. This bipolar amplifier operates within a commercial extended temperature range of -20°C to 75°C and is housed in an 8-terminal PSIP8 plastic package.
Quick Jump:
Technical Specifications

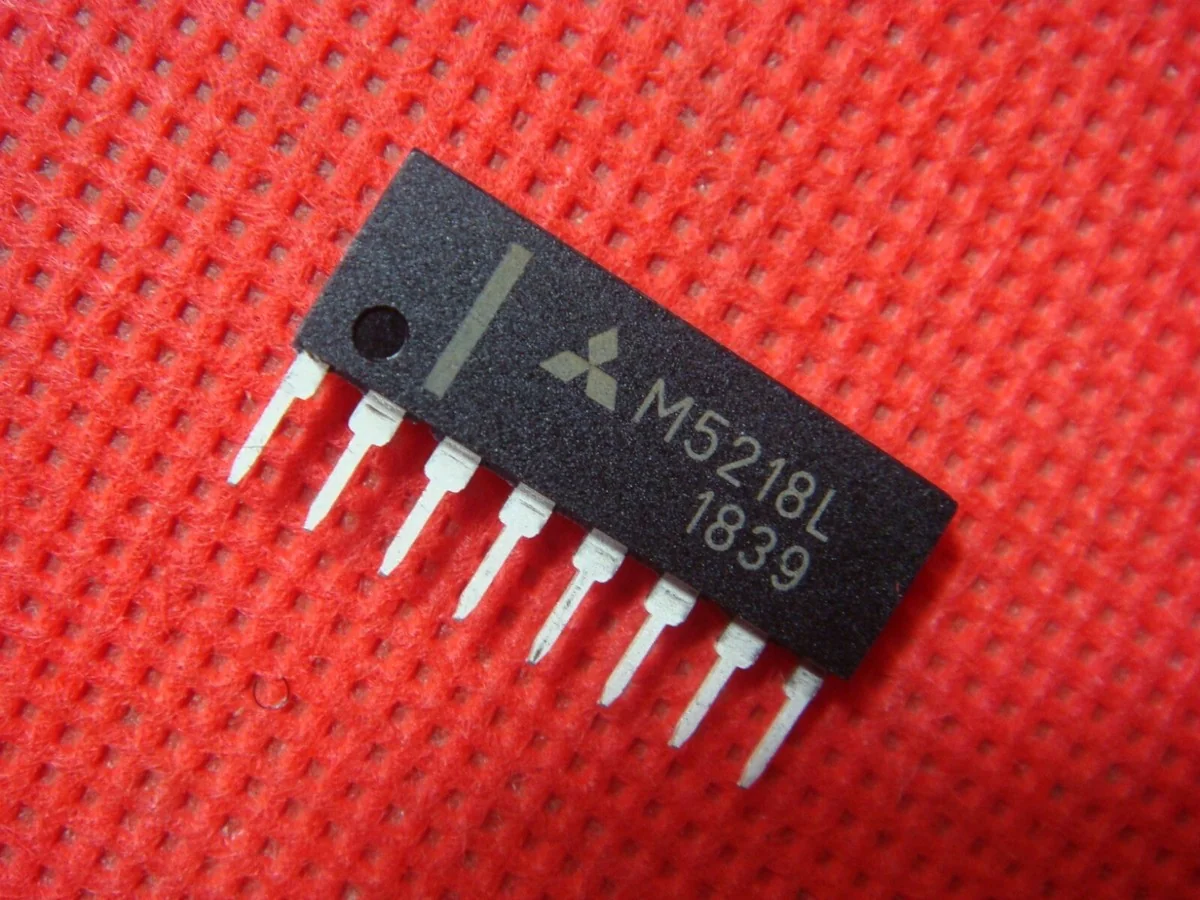

Mitsubishi M5218L technical specifications.
General
Max Operating Temperature
75
Number of Terminals
8
Min Operating Temperature
-20
Terminal Position
SINGLE
JEDEC Package Code
R-PSIP-T8
Pin Count
8
Number of Functions
2
Temperature Grade
COMMERCIAL EXTENDED
Supply Voltage-Nom (Vsup)
15
Supply Current-Max
6
Amplifier Type
OPERATIONAL AMPLIFIER
Supply Voltage Limit-Max
18
Input Offset Voltage-Max
6000
Average Bias Current-Max (IIB)
0.5
Architecture
VOLTAGE-FEEDBACK
Bias Current-Max (IIB) @25C
0.5
Neg Supply Voltage-Nom (Vsup)
-15
Slew Rate-Nom
2.2
Frequency Compensation
YES
Low-Offset
NO
Common-mode Reject Ratio-Nom
90
Voltage Gain-Min
20000
Unity Gain BW-Nom
7000
Neg Supply Voltage Limit-Max
-18
Supply Voltage Range (Recommended)
±2~±16V
Rated Supply Voltage (Recommended)
±15V
Gain (Gvo)
110dB
Total Harmonic Distortion (THD)
0.0015%
Compliance
RoHS
No
Eccn Code
EAR99
HTS Code
8542.33.00.01
REACH
unknown
Military Spec
False
