Rectangular power connector with 8 male contacts, featuring brass with tin plating for solder termination. This vertical, through-hole mount receptacle offers a 3mm pitch and 2 rows, with a 5A current rating and 600V voltage rating. Constructed from black polyester housing, it operates between -40°C and 105°C and boasts UL94 V-0 flammability. Approvals include UL, CSA, and TUV, with RoHS compliance.
Package0812
Voltage Rating600V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43045-0812 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | 0812 |
| Color | Black |
| Contact Material | Brass, Tin |
| Contact Plating | Tin |
| Current Rating | 5A |
| Depth | 8.77mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 9.91mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 16.15mm |
| Material | Polyester |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1440 |
| Packaging | Tray |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 3mm |
| Series | 43045 |
| Termination | Solder |
| Voltage Rating | 600V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43045-0812 Datasheet
Download the complete datasheet for Molex 43045-0812 to view detailed technical specifications.
No datasheet is available for this part.

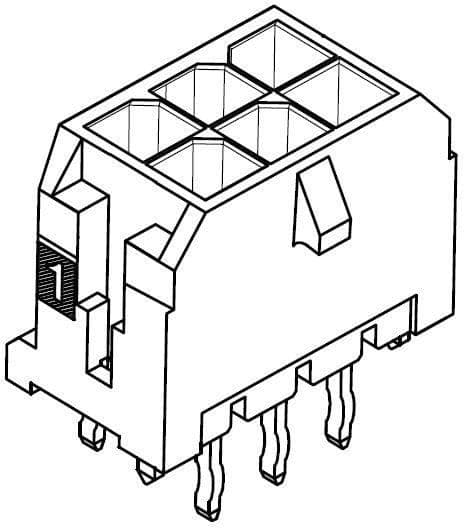

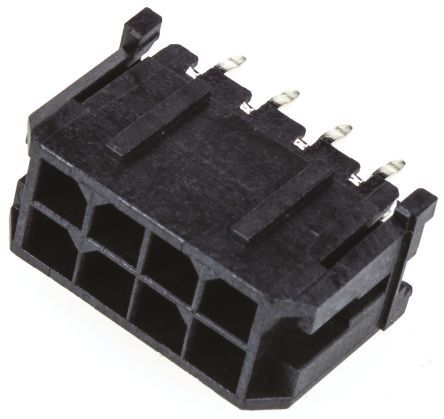

Product Images
