5-position, 1-port, right-angle receptacle for telecom and datacom applications. Features a 0.65mm pitch and surface mount terminal with a locking mechanism. Rated for 1.8A current and 30V AC/DC, with gold-plated copper alloy contacts. Black, low halogen, lead-free, and RoHS compliant with UL94 V-0 flammability.
Voltage Rating30V
Current Rating1.8A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 47346-0001 technical specifications.
General
| Color | Black |
| Contact Current Rating | 1A |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1.8A |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Pitch | 0.65mm |
| Plating | Gold |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 47346 |
| Termination | SMD/SMT |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 47346-0001 Datasheet
Download the complete datasheet for Molex 47346-0001 to view detailed technical specifications.
No datasheet is available for this part.

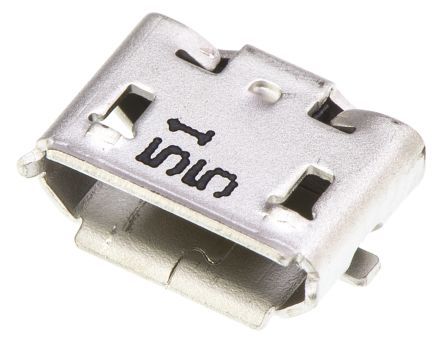

Product Images
