5-position, right-angle receptacle for telecom and datacom applications. Features a 0.8mm pitch, surface mount terminal, and copper alloy contacts with gold plating for 1A current rating and 480Mbps data rate. This shielded, lead-free connector operates at 30V, with a UL94 V-0 flammability rating and a temperature range of 0°C to 50°C. Supplied on tape and reel, it is RoHS compliant.
Voltage Rating30V
Current Rating1A
MountingSurface Mount, Horizontal
Quick Jump:
Technical Specifications
Molex 54819-0572 technical specifications.
General
| Color | Black, Grey |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Data Rate | 480Mbps |
| Depth | 9mm |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount, Horizontal |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 54819 |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Width | 6.9mm |
| Working Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 54819-0572 Datasheet
Download the complete datasheet for Molex 54819-0572 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

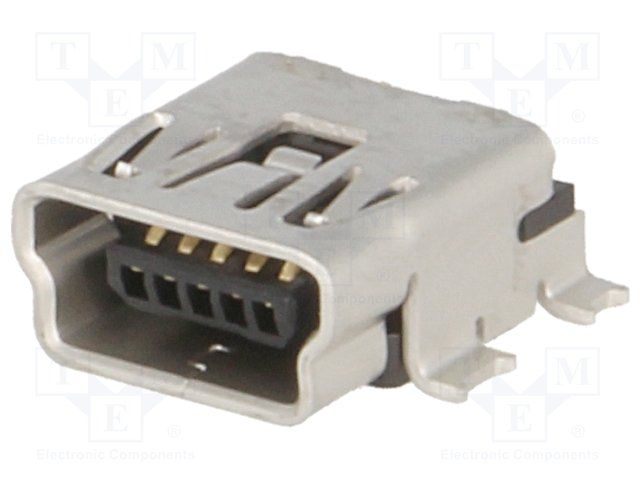

Product Images
