Frequency0 to 6 GHz
Voltage Rating60V
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Molex 73412-0114 technical specifications.
General
| Contact Material | Brass, Bronze |
| Contact Plating | Gold |
| Gender | Female |
| Halogen Free | Low Halogen |
| Height | 1.36mm |
| Impedance | 50R |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 73412 |
| Termination | Solder |
| Voltage Rating | 60V |
| Weight | 0.002469oz |
Compliance
| RoHS | Compliant |
Datasheet
Molex 73412-0114 Datasheet
Download the complete datasheet for Molex 73412-0114 to view detailed technical specifications.
No datasheet is available for this part.

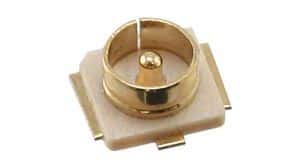

Product Images
