Monolithic Power Systems
MP2357DJ-LF-Z
Switching Regulator, Current-mode, 0.8A, 1400kHz Switching Freq-Max, PDSO6, ROHS COMPLIANT, TSOT-23, MO-193AB, 6 PIN
PackageSOT-23-6
Current800uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Monolithic Power Systems MP2357DJ-LF-Z technical specifications.
General
| Package/Case | SOT-23-6 |
| Efficiency | 92% |
| Lead Free | Lead Free |
| Max Input Voltage | 24V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 15V |
| Min Output Voltage | 810mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 24V |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 15V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 800uA |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Monolithic Power Systems MP2357DJ-LF-Z Datasheet
Download the complete datasheet for Monolithic Power Systems MP2357DJ-LF-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

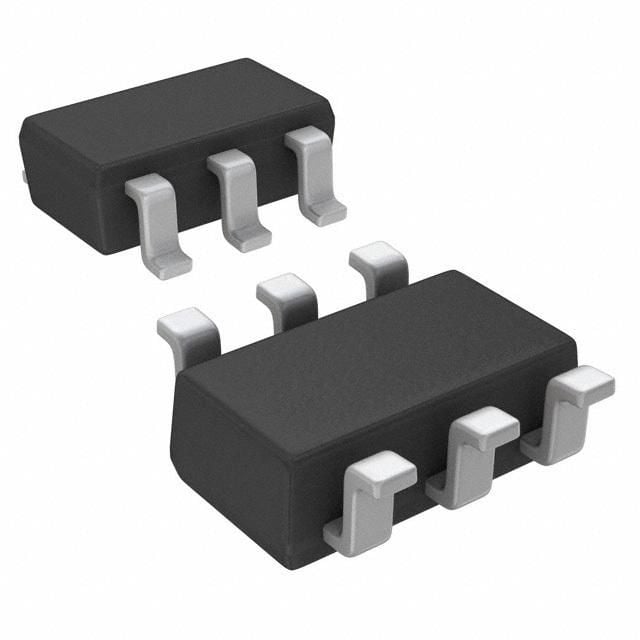

Product Images
