The MP2488DN-LF-Z is a single output LED driver from Monolithic Power Systems. It operates at a maximum frequency of 200kHz and can handle a maximum supply voltage of 55V. The device is packaged in a surface mount SOIC package and is lead free. It has a maximum power dissipation of 2.5W and can operate over a temperature range of -40°C to 85°C. The MP2488DN-LF-Z is RoHS compliant and available in tape and reel packaging.
Frequency200kHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Monolithic Power Systems MP2488DN-LF-Z technical specifications.
General
| Package/Case | SOIC |
| Dimming | PWM |
| Frequency | 200kHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.5W |
| Max Supply Voltage | 55V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 12 |
| Output Current per Channel | 2A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Monolithic Power Systems MP2488DN-LF-Z Datasheet
Download the complete datasheet for Monolithic Power Systems MP2488DN-LF-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

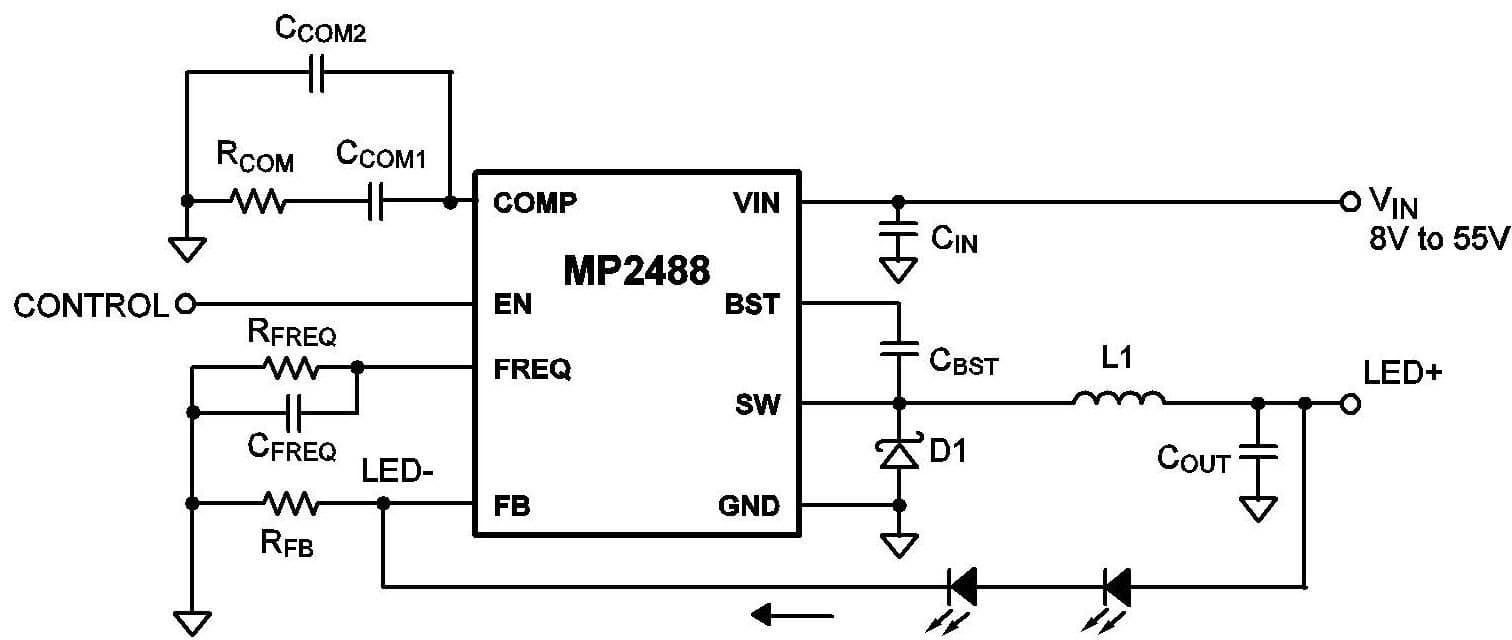

Product Images
