Monolithic Power Systems
MP2562DQ-LF-P
Switching Voltage Regulators 1A/50V, 4MHz HF Step DownSwitch Regulator
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Monolithic Power Systems MP2562DQ-LF-P technical specifications.
General
| Package/Case | QFN |
| Lead Free | Lead Free |
| Max Input Voltage | 50V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 47V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 47V |
| Packaging | Tape and Reel |
| Synchronous Rectifier | No |
| Weight | 0.000247oz |
Compliance
| RoHS | Compliant |
Datasheet
Monolithic Power Systems MP2562DQ-LF-P Datasheet
Download the complete datasheet for Monolithic Power Systems MP2562DQ-LF-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

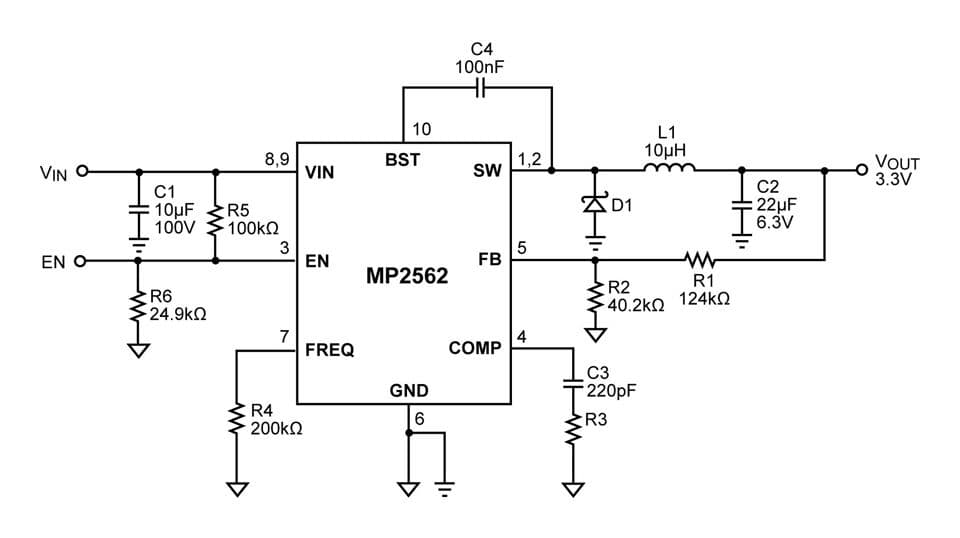

Product Images
