Monolithic Power Systems
MP7722DF-LF
20W Audio Amplifier, 9.5V to 24V, TSSOP, Surface Mount, -40°C to 85°C
The MP7722DF-LF is a 20W audio amplifier with a maximum operating temperature range of -40°C to 85°C. It is available in a TSSOP package and is designed for surface mount applications. The amplifier operates on a supply voltage between 9.5V and 24V, with a maximum supply current of 3mA. The device is RoHS compliant and is packaged in a rail/Tube format with 75 units per package.
PackageTSSOP
Current3mA
MountingSurface Mount
Power20W
Quick Jump:
Technical Specifications
Monolithic Power Systems MP7722DF-LF technical specifications.
General
| Package/Case | TSSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 20W |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 9.5V |
| Mount | Surface Mount |
| Output Power | 20W |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Monolithic Power Systems MP7722DF-LF Datasheet
Download the complete datasheet for Monolithic Power Systems MP7722DF-LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

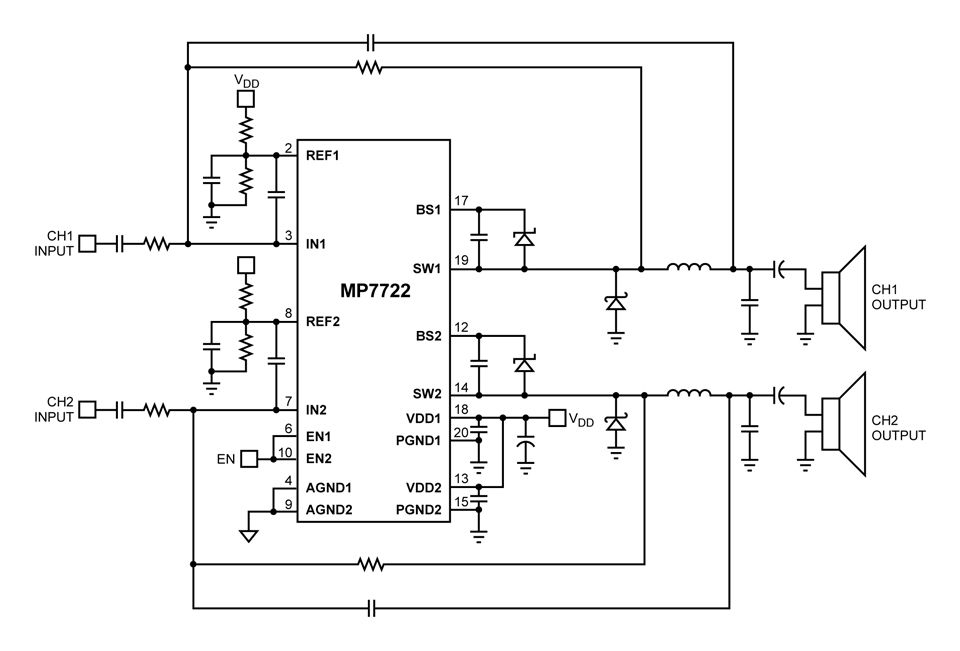

Product Images
