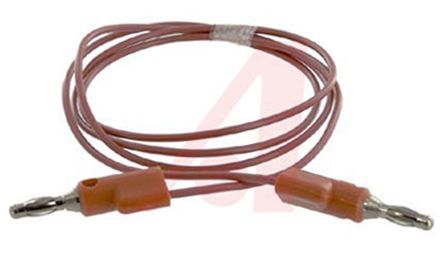

This 36inch lead features a red PVC insulation and a copper construction with a maximum operating temperature of -25°C to 105°C. The lead is rated for 10A and 300V, with a 20AWG wire gauge. It is compliant with RoHS regulations and is available in a single unit quantity.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mueller Electric BU-2020-A-36-2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Red |
| Connector Type A | Plug |
| Connector Type B | Plug |
| Contact Material | Copper, Brass |
| Current Rating | 10A |
| Gender Type A | Male |
| Gender Type B | Male |
| Insulation Color | Red |
| Insulation Material | PVC |
| Lead Length | 90cm |
| Length | 36inch |
| Material | Copper |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | BU |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Color | Red |
| Wire/Cable Gauge | 20AWG |
| RoHS | Compliant |
Download the complete datasheet for Mueller Electric BU-2020-A-36-2 to view detailed technical specifications.
