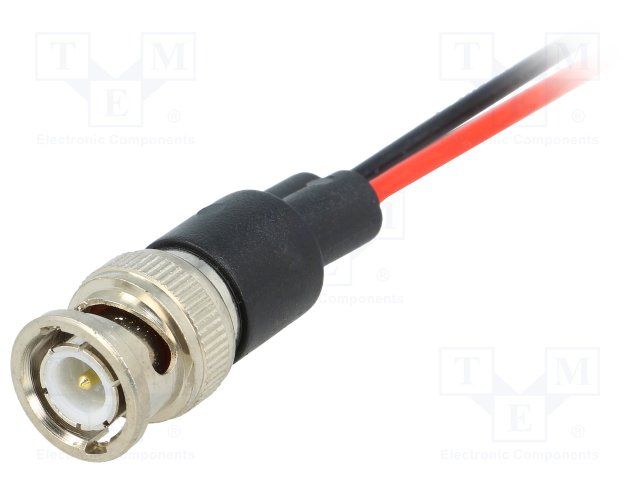

Oscilloscope and multimeter test lead featuring a 101.6mm (4-inch) lead length with 20AWG wire. Equipped with a male BNC plug connector, it boasts brass and gold contact materials for reliable conductivity. The lead is constructed with a brass body and PVC insulation, rated for 300V DC and AC operation, and can withstand temperatures from -221°C to 105°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mueller Electric BU-5100-A-4-0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass, PVC |
| Color | Black, Red |
| Connector Type A | BNC, Plug |
| Contact Material | Brass, Gold |
| Gender Type A | Male |
| Insulation Material | PVC |
| Lead Length | 101.6mm |
| Length | 4inch |
| Material | Brass |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 221°C |
| Mount | Wire |
| Reach SVHC Compliant | Unknown |
| Series | BU |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 20AWG |
| RoHS | Compliant |
