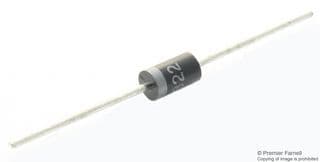

The 1N5819 is a general purpose rectifier diode with a maximum repetitive reverse voltage of 40V and a forward current rating of 1A. It features a DO-41 package with axial lead termination and operates over a temperature range of -65°C to 125°C. The diode is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Multicomp 1N5819 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DO-41 |
| Forward Current | 1A |
| Max Forward Surge Current (Ifsm) | 25A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Outside Diameter | 2.7mm |
| Reach SVHC Compliant | No |
| Termination | Axial |
| RoHS | Compliant |
