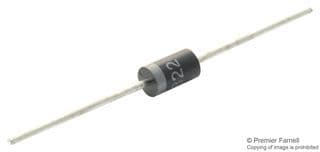

This Schottky rectifier is a 3 A axial diode in a DO-201AD molded plastic package with a maximum recurrent peak reverse voltage of 40 V. It has a maximum forward voltage of 0.525 V at 3 A and supports an 80 A non-repetitive surge current on an 8.3 ms half sine-wave. Typical junction capacitance is 200 pF and typical thermal resistance junction-to-ambient is 40 °C/W. The device operates over a junction temperature range of -65 °C to +125 °C and uses axial leads with cathode polarity marked by a color band.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Multicomp 1N5822 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DO-201AD |
| Forward Current | 3A |
| Max Forward Surge Current (Ifsm) | 80A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
Download the complete datasheet for Multicomp 1N5822 to view detailed technical specifications.
