Technical Specifications
Multicomp 2N2222A technical specifications.
General
| Package/Case | TO-18 |
| Collector Emitter Breakdown Voltage | 40V |
| Collector Emitter Voltage (VCEO) | 300mV |
| hFE Min | 100 |
| Max Collector Current | 800mA |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 500mW |
| Polarity | NPN |
| Power Dissipation | 500mW |
| Reach SVHC Compliant | No |
| Transition Frequency | 300MHz |
Compliance
| RoHS | Compliant |
Datasheet
Multicomp 2N2222A Datasheet
Download the complete datasheet for Multicomp 2N2222A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

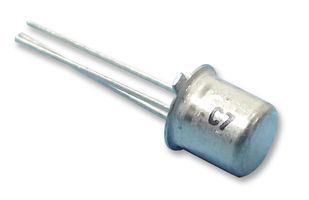

Product Images
