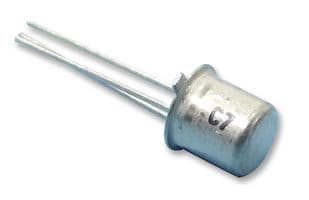

BSX20

MULTICOMP BSX20 Bipolar (BJT) Single Transistor, High Speed Switching, NPN, 15 V, 500 MHz, 360 mW, 500 mA, 40

PackageTO-18

PolarityNPN

Power360mW

Quick Jump:

Multicomp BSX20 technical specifications.

Package/Case	TO-18
Collector Emitter Breakdown Voltage	15V
Collector Emitter Voltage (VCEO)	600mV
hFE Min	40
Max Collector Current	500mA
Max Operating Temperature	200°C
Min Operating Temperature	-65°C
Max Power Dissipation	360mW
Polarity	NPN
Power Dissipation	360mW
Reach SVHC Compliant	No
Transition Frequency	500MHz

RoHS

Compliant
