General purpose rectifier, small signal switching diode with a maximum repetitive reverse voltage of 100V and a forward current of 150mA. Features a maximum forward surge current of 2A and a fast switching speed with a 4ns recovery time. Operates up to a maximum junction temperature of 175°C. Surface mount component available in cut tape packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Multicomp LL4148 technical specifications.
General
| Forward Current | 150mA |
| Max Forward Surge Current (Ifsm) | 2A |
| Max Operating Temperature | 175°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Multicomp LL4148 Datasheet
Download the complete datasheet for Multicomp LL4148 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

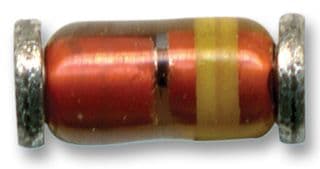

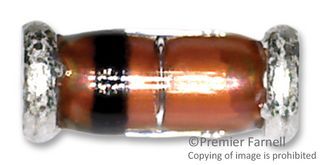

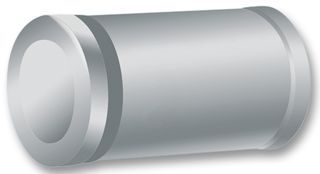

Product Images
