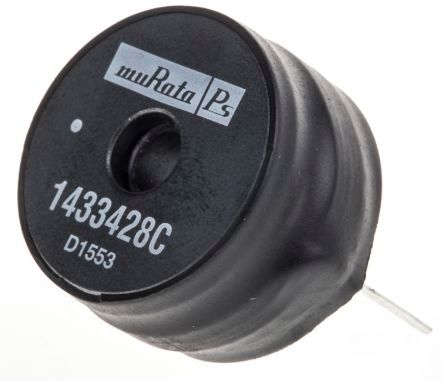

General purpose radial leaded inductor with 330µH inductance and 10% tolerance. Features a 2.8A current rating, 150mΩ DC resistance, and a Q factor of 22. Operates within a temperature range of -40°C to 85°C. This RoHS compliant component is designed for through-hole mounting.
PackageRadial
Current Rating2.8A
MountingThrough Hole, Radial
Inductance330uH
Quick Jump:
Technical Specifications
Murata 1433428C technical specifications.
General
| Package/Case | Radial |
| Current Rating | 2.8A |
| DC Current | 2.8A |
| DC Resistance (DCR) | 150mR |
| Depth | 24.4mm |
| Height | 1.5mm |
| Height - Seated (Max) | 0.61inch |
| Inductance | 330uH |
| Inductance Tolerance | 10% |
| Lead Free | Lead Free |
| Lead Length | 10mm |
| Lead Pitch | 23.4mm |
| Lead/Base Style | Radial |
| Length | 14mm |
| Max DC Current | 2.8A |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Orientation | Vertical |
| Package Quantity | 25 |
| Packaging | Box |
| Q Factor | 22 |
| Radiation Hardening | No |
| Rated Current-Max | 2.8A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.8A |
| RoHS Compliant | Yes |
| Saturation Current | 2.8A |
| Self Resonant Frequency | 2.5MHz |
| Series | 1400 |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 50kHz |
| Tolerance | 10% |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Murata 1433428C Datasheet
Download the complete datasheet for Murata 1433428C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
