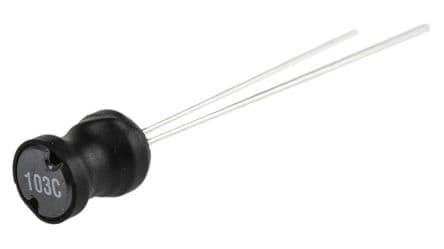

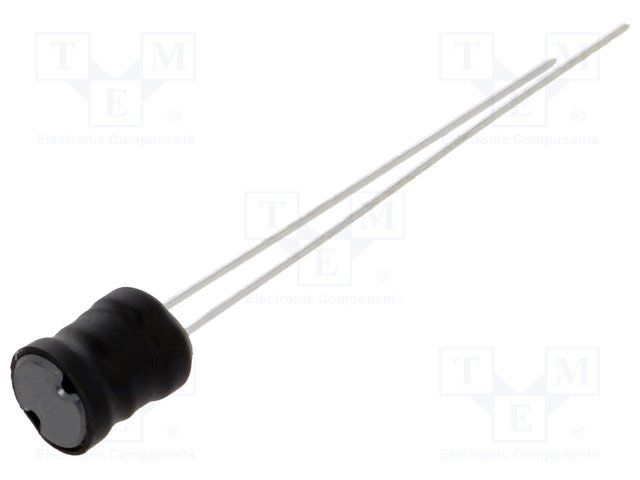

General purpose radial inductor with 10µH inductance and 10% tolerance. Features a ferrite core, 1.62A current rating, and 50mΩ DC resistance. Operates within a -25°C to 70°C temperature range. Through-hole mounting with a 3mm lead pitch. RoHS compliant.
PackageRadial
Current Rating1.62A
MountingThrough Hole, Radial
Inductance10uH
Quick Jump:
Technical Specifications
Murata 22R103C technical specifications.
General
Package/Case
Radial
Contact Plating
Tin, Matte
Current Rating
1.62A
DC Current
1.62A
DC Resistance (DCR)
50mR
Height
10.5mm
Height - Seated (Max)
0.355inch
Inductance
10uH
Inductance Tolerance
10%
Lead Free
Lead Free
Lead Length
35mm
Lead Pitch
3mm
Lead/Base Style
Radial
Length
8.5mm
Max DC Current
1.62A
Max Operating Temperature
70°C
Military Standard
Not
Min Operating Temperature
-25°C
Mount
Through Hole, Radial
Orientation
Vertical
Package Quantity
100
Packaging
Bulk
Q Factor
65
Radiation Hardening
No
Rated Current-Max
1.62A
Reach SVHC Compliant
No
RMS Current (Irms)
1.62A
RoHS Compliant
Yes
Self Resonant Frequency
21.2MHz
Series
2200R
Shielding
Unshielded
Termination
Radial
Test Frequency
1kHz
Tolerance
10%
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Murata 22R103C Datasheet
Download the complete datasheet for Murata 22R103C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
