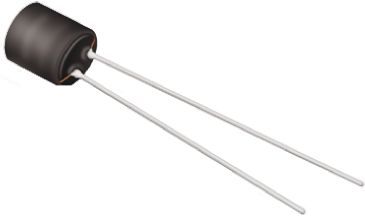

General purpose radial leaded inductor with 47mH inductance and 10% tolerance. Features a ferrite core, 27mA current rating, and 154 Ohms DC resistance. Operating temperature range is -25°C to 70°C. Dimensions include a 7.2mm diameter and 10.5mm height. RoHS compliant and unshielded.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata 22R476C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata 22R476C technical specifications.
| Package/Case | Radial |
| Core Material | Ferrite |
| Current Rating | 27mA |
| DC Current | 27mA |
| DC Resistance (DCR) | 154R |
| Diameter | 7.2mm |
| Height | 10.5mm |
| Height - Seated (Max) | 0.355inch |
| Inductance | 47mH |
| Inductance Tolerance | 10% |
| Lead Free | Lead Free |
| Lead Length | 35mm |
| Lead Pitch | 3mm |
| Lead/Base Style | Radial |
| Length | 7.7mm |
| Max DC Current | 27mA |
| Max Operating Temperature | 70°C |
| Military Standard | Not |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, Radial |
| Orientation | Vertical |
| Package Quantity | 100 |
| Packaging | Bulk |
| Q Factor | 90 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 27mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 250kHz |
| Series | 2200R |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 10% |
| Type | General Purpose |
| RoHS | Compliant |
