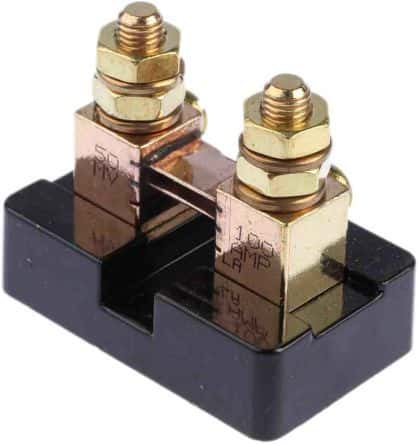

100A/50mV DC Shunt resistor for digital panel meters. Features 0.5mR resistance with 0.25% accuracy and tolerance. Rated for 100A input current and 50V DC, with a maximum power dissipation of 5W. Operates within a temperature range of -40°C to 60°C. This component has a wire termination and flange mounting style.
Package100
Resistance0.5mR
Current Rating100A
MountingFlanges
Quick Jump:
Technical Specifications
Murata 3020-01099-0 technical specifications.
General
| Accuracy | 0.25% |
| Package/Case | 100 |
| Current Rating | 100A |
| Height | 42.7mm |
| Input Current | 100A |
| Lead Free | Lead Free |
| Length | 50.8mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 5W |
| Mount | Flanges |
| Mounting Style | BASE |
| Nominal Supply Current | 100A |
| Output Voltage | 50mV |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 0.5mR |
| Series | DMS |
| Termination | Wire |
| Tolerance | 0.25% |
| DC Rated Voltage | 50V |
| Width | 31.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata 3020-01099-0 Datasheet
Download the complete datasheet for Murata 3020-01099-0 to view detailed technical specifications.
