Surface mount current transformer with a 1:100 turns ratio, designed for 50 to 500 kHz operating frequencies. Features a 10A primary current rating, 500Vrms isolation voltage, and a primary DC resistance of 7mΩ. Secondary DC resistance is 5.6Ω, with a 2mH inductance. This component offers gull wing termination and operates within a temperature range of -40°C to 125°C.
Frequency500kHz
Current Rating10A
MountingSurface Mount
Inductance2mH
Quick Jump:
Technical Specifications
Murata 53100C technical specifications.
General
| Contact Plating | Tin |
| Current Rating | 10A |
| DC Resistance (DCR) | 5.6R |
| Depth | 5.4mm |
| Height | 5.4mm |
| Inductance | 2mH |
| Input Current | 10A |
| Isolation Voltage | 500V |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 8.3mm |
| Max Frequency | 500kHz |
| Min Frequency | 50kHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 50 to 500 kHz |
| Packaging | Tape and Reel |
| Primary Current | 10A |
| Primary Impedance | 7mR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 5300 |
| Termination | Gull Wing |
| Turns Ratio | 1:100 |
| Width | 7.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata 53100C Datasheet
Download the complete datasheet for Murata 53100C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

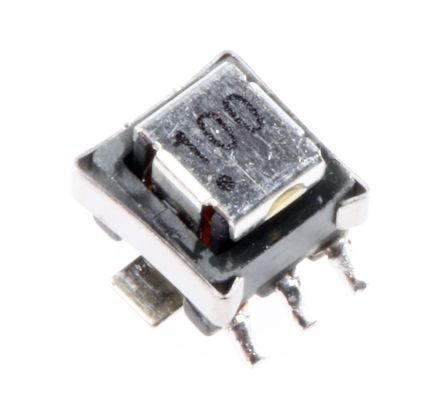

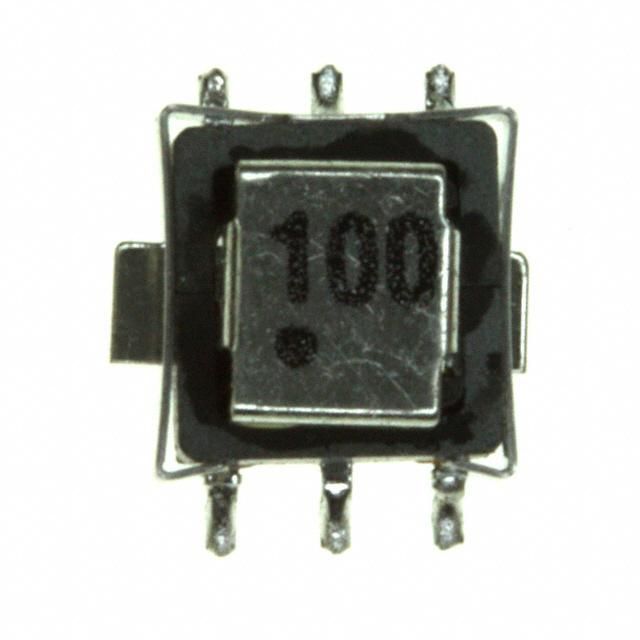

Product Images
